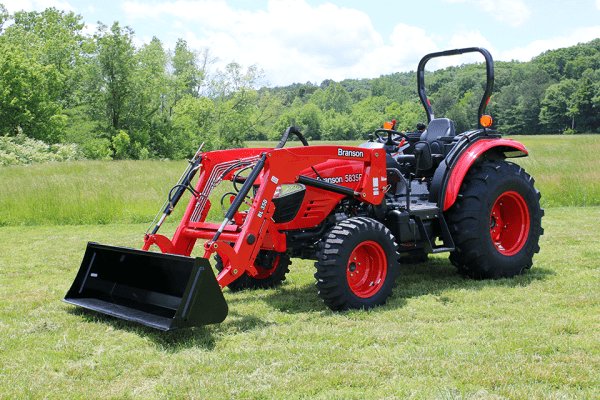

Branson Tractors - 5835R
Description:
“Wet” clutch and shuttle with sensitivity control adjustment
Leading Particulars:
- Cast Iron Housings, Metal Hood and Fenders. Powder Coat Finish.
- Large Operator’s Platform with comfortable, adjustable seat with armrests
- Adjustable 3-point Hitch Links
- Fender-Mounted 3-Point Lift
- ”Wet” Clutch and Shuttle with Sensitivity Control Adjustment
- Ag, Turf, or Industrial Tires
Specifications:
-
ENGINE :
-
Engine Model - A2300T1
-
Aspiration - Turbo
-
Emissions Standards - Tier 4
-
Engine Gross Power – hp(kW) - 58 hp (42.5 kW)
-
PTO Power – hp(kW) - 48 hp (35 kW)
-
No. of Cylinders - 4
-
Displacement – cu.in (cc) - 139.5 cu. in (2,287 cc)
-
Rated Revolution – RPM - 2600 RPM
-
Fuel Tank Capacity – gal(L) - 15.3 gal (58 L)
-
Air Cleaner - Dry Element
-
Alternator – 12 Volt amp - 12V-70A
-
-
DRIVETRAIN :
-
Transmission - Synchromesh
-
Forward/Reverse Method - Power shuttle
-
4 Wheel Drive - 2WD/4WD
-
No. of Traveling Speeds - 12F / 12R
-
Forward Traveling Speed – mph (km/h) - 19.9 mph (32.05 km/h)
-
Reverse Traveling Speed- mph (km/h) - 18.9 mph (30.49 km/h)
-
Clutch - Wet, Multi-disc
-
Brake - Wet, Multi-disc
-
Differential Lock - Standard
-
Cruise Control - No
-
-
HYDRAULICS :
-
Steering - Hydrostatic Power Steering
-
Total Hydraulic Flow (POWER STEERING + Implement) gpm/lpm - 13.3(9.2+4.1) gpm / 50.5(34.8+15.7) lpm
-
Lift Control Type - Electronic
-
Joystick Valve - Standard
-
Rear Remote (Port) - 4 Port
-
-
3 POINT HITCH :
-
3 Point Hitch - CAT 2
-
Lift capacity at lift link ends – lbs(kg) - 4,409 lbs (2,000 kg)
-
3Point Hitch Lift Capacity @24″ behind lift point – lbs(kg) - 3,075 lbs (1395 kg)
-
-
PTO :
-
Rear (Mid) PTO Speed - 584 RPM
-
Rear PTO Type - Independent
-
Clutch - Wet, Multi-disc
-
-
TIRES :
-
AG Front - 9.5 – 20
-
AG Rear - 14.9 – 28
-
Ind. Front - 10.5/80-18
-
AG Rear - 16.9 – 24
-
-
DIMENSIONS :
-
Wheelbase – in(mm) - 78.9 in (2,005 mm)
-
Overall Length (W/ 3PT) – in(mm) - 137.9 lbs (3,505 mm)
-
Min.Overall Width – in(mm) - 68.9 lbs (1,750 mm)
-
Overall Height (W/ ROPS) – in(mm) - 102.8 lbs (2,611 mm)
-
Ground Clearance (4WD) – in(mm) - 18.1 lbs (460 mm)
-
Min.Turning Radius (W/ Brake) – ft - 8.89 ft (2.71 m)
-
Weight (W/O Front Weights) – lbs(kg) - 4,299 lbs (1950 kg)
-
