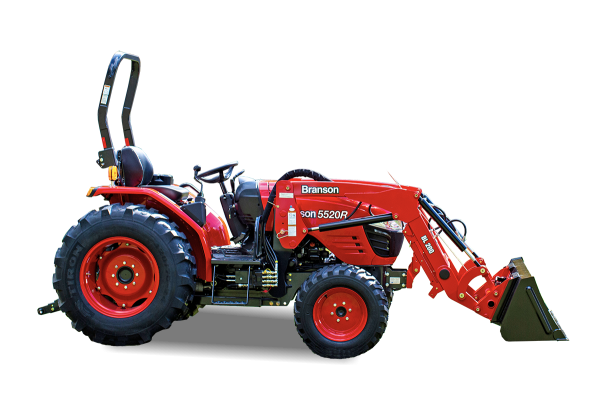

Branson Tractors - 5520R
Description:
Branson designed their 20 series tractors with rugged, dependability in mind.
Leading Particulars:
- Strongest, Toughest, Most Powerful Tractor in this Horsepower Range
- Large Operator’s Station with Deluxe Seat
- Heavy Duty 3pt Hitch with Pin Style Stabilizers and Adjustable Lower Links
- Yoke type Rock Shaft Arms
- Fully synchronized transmission and shuttle
- 2 Backhoe Options: 7 1/2 & 8 1/2 Foot Digging Depth-Frame Mounted Units
- High Capacity Loader with Skid Steer Bucket (standard)\ 2700 lb Lift Capacity at Full Height of 104 inches
Specifications:
-
ENGINE :
-
Engine Model - A2300T3
-
Aspiration - Turbo
-
Emissions Standards - Tier 4
-
Engine Gross Power - 55 hp (41.0 kW)
-
PTO Power - 44 hp (32.8 kW)
-
No. of Cylinders - 4
-
Displacement - 139.5 cu.in (2,286 cc)
-
Rated Revolution - 2600 RPM
-
Fuel Tank Capacity - 11.8 gal (45 L)
-
Air Cleaner - Dry Element
-
Alternator – 12 Volt amp - 50
-
-
DRIVETRAIN :
-
Transmission - Synchromesh
-
Forward/Reverse Method - Synchroshuttle
-
4 Wheel Drive - 2WD/4WD
-
No. of Traveling Speeds - 16F / 16R (4 Range)
-
Forward Traveling Speed @ 2600 - 16 mph (25.7 km/h)
-
Reverse Traveling Speed @ 2600 - 15.2 mph (24.5 km/h)
-
Clutch - Dry Single Type (N/A)
-
Brake - Wet, Multi-disc
-
Differential Lock - Standard
-
Cruise Control - No
-
-
HYDRAULICS :
-
Steering - Hydrostatic Power Steering
-
Total Hydraulic Flow (POWER STEERING+Implement) - 14.3 (4.4+9.9) gpm / 54.2 (16.8+37.4) lpm
-
Lift Control Type - Position
-
Joystick Valve - Standard
-
Rear Remote (Port) - Optional (Up to 4)
-
-
3 POINT HITCH :
-
3 Point Hitch - CAT I
-
Lift capacity at lift link ends - 3,306 lbs (1,500 kg)
-
3Point Hitch Lift Capacity @24″ behind lift point - 2,425 lbs (1,100 kg)
-
-
PTO :
-
Rear (Mid) PTO Speed - 584 / 791 RPM
-
Rear PTO Type - Independent
-
Clutch - Wet, Multi-disc
-
-
TIRES :
-
AG Front - 9.5 – 16
-
AG Rear - 13.6 – 26
-
Turf Front - 27×8.5-15/ 29×12.5-15
-
AG Rear - 41×14-20/ 44×18-20
-
Ind. Front - 12-16.5
-
AG Rear - 17.5Lx24
-
-
DIMENSIONS :
-
Wheelbase - 71.1 in (1,806 mm)
-
Overall Length (W/ 3PT) - 127.4 in (3,236 mm)
-
Min.Overall Width - 64.9 in (1,650 mm)
-
Overall Height (W/ ROPS) - 98.4 in (2,500 mm)
-
Ground Clearance (4WD) - 15.5 in (394 mm)
-
Min.Turning Radius (W/ Brake) - 9.18 ift (2.8 m)
-
Weight (W/O Front Weights) - 3,836 lbs (1,740 kg)
-
