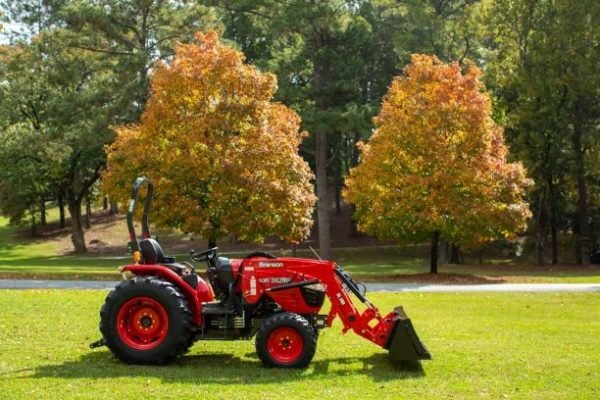

Branson Tractors - 3620R
Description:

Branson designed their 20 series tractors with rugged, dependability in mind.


Leading Particulars:
  • Strongest, Toughest, Most Powerful Tractor in this Horsepower Range
  • Large Operator’s Station with Deluxe Seat
  • Heavy Duty 3pt Hitch with Pin Style Stabilizers and Adjustable Lower Links
  • Yoke type Rock Shaft Arms
  • Fully synchronized transmission and shuttle
  • 2 Backhoe Options: 7 1/2 & 8 1/2 Foot Digging Depth-Frame Mounted Units
  • High Capacity Loader with Skid Steer Bucket (standard)\ 2700 lb Lift Capacity at Full Height of 104 inches
Specifications:
  • ENGINE :
    • Engine Model - A1700N2
    • Aspiration - Natural
    • Emissions Standards - –
    • Engine Gross Power - 35 hp (26.0 kW)
    • PTO Power - 28 hp (20.8 kW)
    • No. of Cylinders - 3
    • Displacement - 104.5 cu.in (1,714 cc)
    • Rated Revolution - 2500 RPM
    • Fuel Tank Capacity - 11.8 gal (45 L)
    • Air Cleaner - Dry Element
    • Alternator – 12 Volt amp - 50
  • DRIVETRAIN :
    • Transmission - Synchromesh
    • Forward/Reverse Method - Synchroshuttle
    • 4 Wheel Drive - 2WD/4WD
    • No. of Traveling Speeds - 16F / 16R (4 Range)
    • Forward Traveling Speed @ 2600 - 16 mph (25.7 km/h)
    • Reverse Traveling Speed @ 2600 - 15.2 mph (24.5 km/h)
    • Clutch - Dry Single Type
    • Brake - Wet, Multi-disc
    • Differential Lock - Standard
    • Cruise Control - No
  • HYDRALICS :
    • Steering - Hydrostatic Power Steering
    • Total Hydraulic Flow (POWER STEERING+Implement) - 12.3 (4.3+8) gpm / 46.8 (16.4+30.4) lpm
    • Lift Control Type - Position
    • Joystick Valve - Standard
    • Rear Remote (Port) - Optional (Up to 4)
  • 3 POINT HITCH :
    • 3 Point Hitch - CAT I
    • Lift capacity at lift link ends - 3,306 lbs (1,500 kg)
    • 3Point Hitch Lift Capacity @24″ behind lift point - 2,425 lbs (1,100 kg)
  • PTO :
    • Rear (Mid) PTO Speed - 584 / 791 RPM
    • Rear PTO Type - Independent
    • Clutch - Wet, Multi-disc
  • TIRES :
    • AG Front - 9.5 – 16
    • AG Rear - 12.4 – 28
    • Turf Front - 27×8.5-15/ 29×12.5-15
    • AG Rear - 41×14-20/ 44×18-20
    • Ind. Front - 10×16.5
    • AG Rear - 420/70×24
  • DIMENSIONS :
    • Wheelbase - 71.1 in (1,806 mm)
    • Overall Length (W/ 3PT) - 127.4 in (3,236 mm)
    • Min.Overall Width - 64.9 in (1,650 mm)
    • Overall Height (W/ ROPS) - 98.4 in (2,500 mm)
    • Ground Clearance (4WD) - 15.5 in (394 mm)
    • Min.Turning Radius (W/ Brake) - 9.18 ift (2.8 m)
    • Weight (W/O Front Weights) - 3,754 lbs (1,703 kg)
