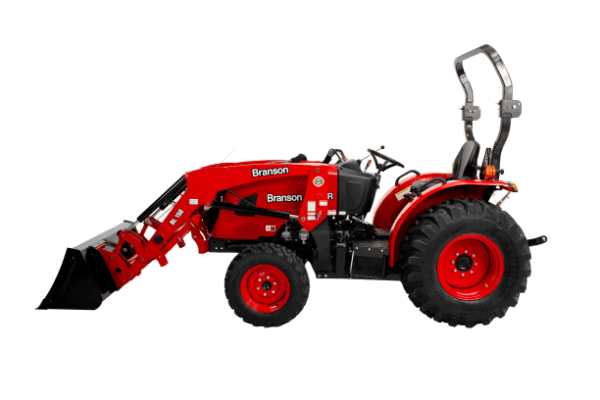

Branson Tractors - 3015R
Description:
Branson Tractors designed their midsize tractors with rugged, dependability in mind.
Leading Particulars:
- Compact Design with multiple Horsepower Options: 25, 30, 35, 42, and 48
- 3 Range/4 Speed with Shuttle Transmissions
- High Capacity Loader with Skid Steer Attach Bucket (standard) 2200 lb Capacity at Full Height of 104 inches
Specifications:
-
ENGINE :
-
Engine Model - Branson A2000N2 IDI
-
Aspiration - Natural
-
Emissions Standards - Tier 4
-
Engine Gross Power - 30 hp (22.5 kW)
-
PTO Power - 25 hp (18.7 kW)
-
No. of Cylinders - 3
-
Displacement - 104.5 cu.in (1,714 cc)
-
Rated Revolution - 2600 RPM
-
Fuel Tank Capacity - 7.1 gal (27 L)
-
Air Cleaner - Dry Element
-
Alternator – 12 Volt amp - 50
-
-
DRIVETRAIN :
-
Transmission - Synchromesh
-
Forward/Reverse Method - Synchromesh
-
4 Wheel Drive - 2WD/4WD
-
No. of Traveling Speeds - 12F / 12R
-
Forward Traveling Speed - 14.9 mph (24 km/h)
-
Reverse Traveling Speed - 14.3 mph (23 km/h)
-
Clutch - Dry Single Type
-
Brake - Wet, Multi-disc
-
Differential Lock - STD
-
Cruise Control - No
-
-
HYDRAULICS :
-
Steering - Hydrostatic Power Steering
-
Total Hydraulic Flow (POWER STEERING + Implement) - 12.3 (4.3+8) gpm/ 46.8 (16.4+30.4) lpm
-
Lift Control Type - Position
-
Joystick Valve - N/A
-
Rear Remote (Port) - Optional (Up to 4)
-
-
3 POINT HITCH :
-
3 Point Hitch - CAT I
-
Lift capacity at lift link ends - 3,306 lbs (1,500 kg)
-
3Point Hitch Lift Capacity @24″ behind lift point - 2,425 lbs (1,100 kg)
-
-
PTO :
-
Rear (Mid) PTO Speed - 560 RPM
-
Rear PTO Type - Independent
-
Clutch - Wet, Multi-disc
-
-
TIRES :
-
AG Front - 8-16
-
AG Rear - 12.4 – 24
-
Turf Front - –
-
AG Rear - –
-
Ind. Front - 28 x 8.50-15
-
AG Rear - 43 x 16.00-20
-
-
DIMENSIONS :
-
Wheelbase - 65.7 in (1,670 mm)
-
Overall Length (W/ 3PT) - 120.9 (3,071 mm)
-
Min.Overall Width - 56.3 in (1,430 mm)
-
Overall Height (W/ ROPS) - 97.3 in (2,471 mm)
-
Ground Clearance (4WD) - 14.4 in (366 mm)
-
Min.Turning Radius (W/ Brake) - 7.51 in (2.29 mm)
-
Weight (W/O Front Weights) - 3,183 lbs (1444 kg)
-
