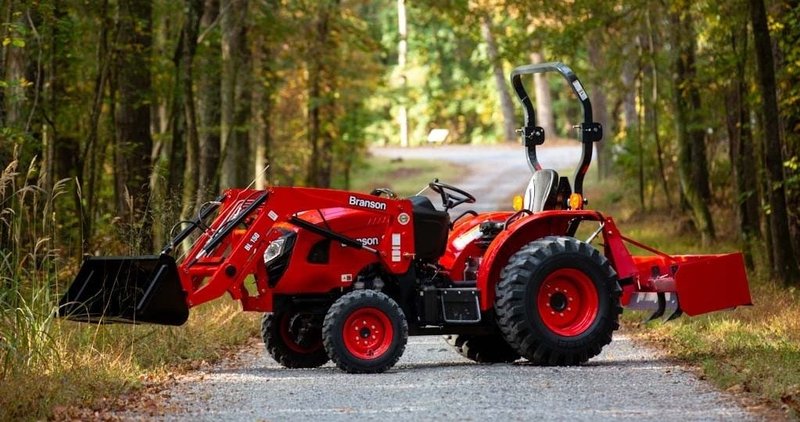

Branson Tractors - 2515H
Description:
Branson Tractors designed their midsize tractors with rugged, dependability in mind.
Leading Particulars:
Clean EPA Tier 4 Engine (No need for a DPF filter)
12F/12R or 3Range
Hydrostatic Steering, Fingertip ease
Skid Steer bucket loader
Unbeatable lift capacity 2,200 lbs
Weight 2.969 lbs
Specifications:
-
ENGINE :
-
Engine Model - Branson A1700N6 IDI
-
Aspiration - Natural
-
Emissions Standards - Tier 4
-
Engine Gross Power - 24 hp (18 kW)
-
PTO Power - 21 hp (15.7 kW)
-
No. of Cylinders - 3
-
Displacement - 104.5 cu.in (1,714 cc)
-
Rated Revolution - 2100 RPM
-
Fuel Tank Capacity - 7.1 gal (27 L)
-
Air Cleaner - Dry Element
-
Alternator – 12 Volt amp - 50
-
DRIVETRAIN :
-
Transmission - hst
-
Forward/Reverse Method - hst
-
4 Wheel Drive - 2WD/4WD
-
No. of Traveling Speeds - 3 range
-
Forward Traveling Speed - 15.2 mph (24.4 km/h)
-
Reverse Traveling Speed - ‘15.2 mph (24.4)
-
Clutch - No
-
Brake - Wet, Multi-disc
-
Differential Lock - STD
-
Cruise Control - Standard
-
HYDRAULICS :
-
Steering - Hydrostatic Power Steering
-
Total Hydraulic Flow (POWER STEERING+Implement) - 11.5
(4+7.5) /
43.5
(15.2+28.3) lpm
-
Lift Control Type - Position
-
Joystick Valve - N/A
-
Rear Remote (Port) - Optional (Up to 4)
-
3 POINT HITCH :
-
3 Point Hitch - CAT I
-
Lift capacity at lift link ends - 3,306 lbs (1,500 kg)
-
3Point Hitch Lift Capacity @24″ behind lift point - 2,425 lbs (1,100 kg)
-
-
-
DIMENSIONS :
-
Wheelbase - 65.7 in (1,670 mm)
-
Overall Length (W/ 3PT) - 120.9 in (3,071 mm)
-
Min.Overall Width - 56.3 in (1,430 mm)
-
Overall Height (W/ ROPS) - 97.3 in (2,471 mm)
-
Ground Clearance (4WD) - 14.4 in (366 mm)
-
Min.Turning Radius (W/ Brake) - 7.51 in (2.29 mm)
-
Weight (W/O Front Weights) - 2,969 lbs (1,347 kg)
