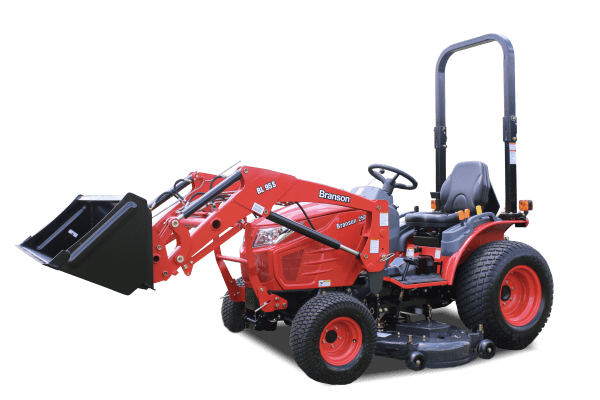

Branson Tractors - 2505H
Description:
These tractors have a Heavy Duty Drawbar and Hydro-Max Transmission
Leading Particulars:
- 2 Range HST Transmission
- Hydrostatic Steering and Cruise Control
- One Touch ON/OFF switch
- Quick Disconnect Loader with Level Indicator and Loader Valve with “Float Position”
- 60 inch Mid Mount Finish Mower
Specifications:
-
PRODUCT OF ORIGIN :
-
Korea -
-
-
ENGINE :
-
Engine Model - Yanmar 3TNV80F NXDKTF
-
Aspiration - Natural
-
Emissions Standards - Tier 4
-
Engine Gross Power - 24.7 hp (18.4 kW)
-
PTO Power - 18.8 hp (14.0 kW)
-
No. of Cylinders - 3
-
Displacement - 77.3 cu.in (1,267 cc)
-
Rated Revolution - 3000 RPM
-
Fuel Tank Capacity - 5.8 gal (22 L)
-
Air Cleaner - Dry, Element
-
Alternator – 12 Volt amp - 40
-
-
DRIVETRAIN :
-
Transmission - hst
-
Forward/Reverse Method - hst
-
4 Wheel Drive - 2WD/4WD
-
No. of Traveling Speeds - 2 Range
-
Forward Traveling Speed - 11.0 mph (17.7 km/h)
-
Reverse Traveling Speed - 11.2 mph (18.1 km/h)
-
Clutch - No
-
Brake - Wet, Multi-disc
-
Differential Lock - STD
-
Cruise Control - Standard
-
-
HYDRAULICS :
-
Steering - Power Assisted Hydrostatic
-
Total Hydraulic Flow (POWER STEERING+Implement) - 7.0(2.8+4.2) gpm/ 25.7(10.5+15.8) lpm
-
Lift Control Type - Position
-
Joystick Valve - No
-
Rear Remote (Port) - Option (Up to 2)
-
-
3 POINT HITCH :
-
3 Point Hitch - CAT I
-
Lift capacity at lift link ends - 1,214 lbs (551 kg)
-
3Point Hitch Lift Capacity @24″ behind lift point - 1,101 lbs (499 kg)
-
-
PTO :
-
Rear (Mid) PTO Speed - 540 (2,000 RPM)
-
Rear PTO Type - Independent
-
Clutch - –
-
-
TIRES :
-
AG Front - 6 – 12
-
AG Rear - 9.5 – 16
-
Turf Front - 20 x 8.00-10
-
AG Rear - 29 x 12.5-15
-
Ind. Front - 23 x 8.50 – 12
-
AG Rear - 12 – 16.5
-
-
DIMENSIONS :
-
Wheelbase - 57.5 in (1,460 mm)
-
Overall Length (W/ 3PT) - 100.5 in (2,553 mm)
-
Min.Overall Width - 45.8 in (1.164 mm)
-
Overall Height (W/ ROPS) - 91.3 in (2,320 mm)
-
Ground Clearance (4WD) - 9.5 in (240 mm)
-
Min.Turning Radius (W/ Brake) - 8.32 ft (2.54 m)
-
Weight (W/O Front Weights) - 1,638 lbs (743 kg)
-
