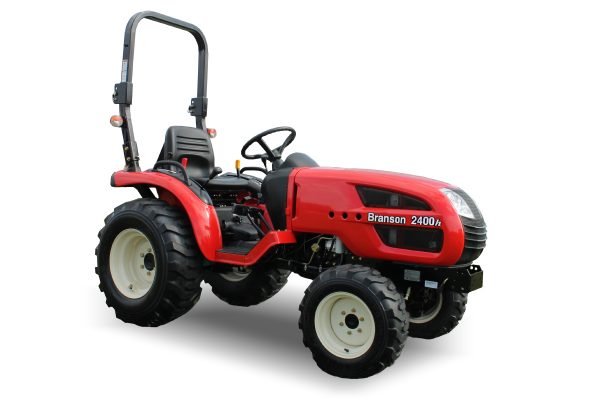

Branson Tractors - 2400H
Description:

Branson Tractors designed their compact tractors with rugged, dependability in mind.
The compact series come standard with many of the same features offered on our larger tractors.


Leading Particulars:
  • Cast Iron Housings, Metal Hood and Fenders.\ Powder Coat Finish (1810 lb shipping weight)
  • Hydrostatic Steering with Two Hydraulic Pumps
  • Wet Disc Brakes
  • High Capacity Loader with Skid Steer Attach Bucket Option (1314 lb capacity at full height of 88.3 inches)
  • Full Line of Accessories Available- Heated Cab, 60 inch Mid Mount Mower, 56 inch Front Mount Snow Blower, Backhoes, Canopies
  • Ag, Turf, or Industrial Tires
Specifications:
  • PRODUCT OF ORIGIN :
    • Korea -
  • ENGINE :
    • Engine Model - A1100N2 IDI NA
    • Aspiration - Natural
    • Emissions Standards - Tier 4
    • Engine Gross Power - 24 hp (17.9 kW)
    • PTO Power - 18 hp (13.5 kW)
    • No. of Cylinders - 3
    • Displacement - 71.7 cu.in (1,175 cc)
    • Rated Revolution - 2800 RPM
    • Fuel Tank Capacity - 6.0 gal (23 L)
    • Air Cleaner - Dry, Element
    • Alternator – 12 Volt amp - 60
  • DRIVETRAIN :
    • Transmission - hst
    • Forward/Reverse Method - hst
    • 4 Wheel Drive - 2WD/4WD
    • No. of Traveling Speeds - 2 Range
    • Forward Traveling Speed - 1.4-13.4 mph (2.3-21.7 km/h)
    • Reverse Traveling Speed - 1.4-13.4 mph (2.3-21.7 km/h)
    • Clutch - Dry Single Plate
    • Brake - Wet, Multi-disc
    • Differential Lock - STD
    • Cruise Control - Standard
  • HYDRAULICS :
    • Steering - Power Assisted Hydrostatic
    • Total Hydraulic Flow (POWER STEERING+Implement) - 7.4 (3.1+4.3) gpm/ 28.1 (11.7+16.4) lpm
    • Lift Control Type - Position
    • Joystick Valve - No
    • Rear Remote (Port) - Option (Up to 2)
  • 3 POINT HITCH :
    • 3 Point Hitch - CAT I
    • Lift capacity at lift link ends - 1,499 lbs (680 kg)
    • 3Point Hitch Lift Capacity @24″ behind lift point - 974 lbs (442 kg)
  • PTO :
    • Rear (Mid) PTO Speed - 540 / 960 (2,500 RPM)
    • Rear PTO Type - Live
    • Clutch - –
  • TIRES :
    • AG Front - 6 – 12
    • AG Rear - 9.5 – 16
    • Turf Front - 23 x 8.50 – 12
    • AG Rear - 33 x 12.50 – 16.5
    • Ind. Front - 23 x 8.50 – 12
    • AG Rear - 12 – 16.5
  • DIMENSIONS :
    • Wheelbase - 59.1 in (1,502 mm)
    • Overall Length (W/ 3PT) - 120.3 in (3,055 mm)
    • Min.Overall Width - 44.2 in (1,124 mm)
    • Overall Height (W/ ROPS) - 87.3 in (2,219 mm)
    • Ground Clearance (4WD) - 12.1 in (307 mm)
    • Min.Turning Radius (W/ Brake) - 9.61 ft (2.93 m)
    • Weight (W/O Front Weights) - 1,829 lbs (830 kg)
