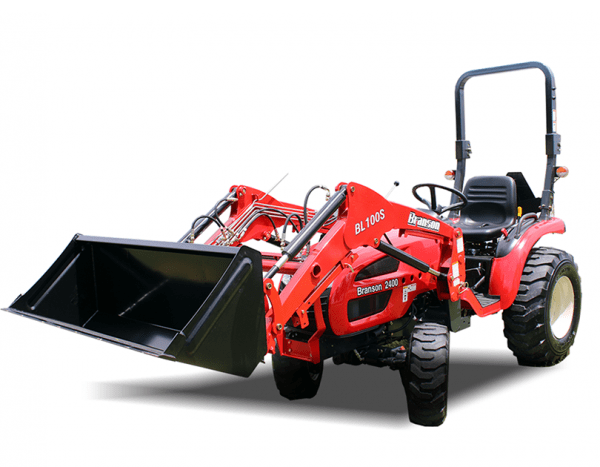

Branson Tractors - 2400
Description:
Branson Tractors designed their sub-compact tractors with rugged, dependability in mind.
The compact series come standard with many of the same features offered on our larger tractors.
Leading Particulars:
- Cast Iron Housings, Metal Hood and Fenders.\ Powder Coat Finish (1810 lb shipping weight)
- Hydrostatic Steering with Two Hydraulic Pumps
- Wet Disc Brakes
- High Capacity Loader with Skid Steer Attach Bucket Option (1314 lb capacity at full height of 88.3 inches)
- Full Line of Accessories Available- Heated Cab, 60 inch Mid Mount Mower, 56 inch Front Mount Snow Blower, Backhoes, Canopies
- Ag, Turf, or Industrial Tires
Specifications:
-
PRODUCT OF ORIGIN :
-
Korea -
-
-
ENGINE :
-
Engine Model - A1100N2 IDI NA
-
Aspiration - Natural
-
Emissions Standards - Tier 4
-
Engine Gross Power - 24 hp (17.9 kW)
-
PTO Power - 21 hp (15.7 kW)
-
No. of Cylinders - 3
-
Displacement - 71.7 cu.in (1,175 cc)
-
Rated Revolution - 2800 RPM
-
Fuel Tank Capacity - 6.0 gal (23 L)
-
Air Cleaner - Dry, Element
-
Alternator – 12 Volt amp - 60
-
-
DRIVETRAIN :
-
Transmission - ConstantMesh
-
Forward/Reverse Method - –
-
4 Wheel Drive - 2WD/4WD
-
No. of Traveling Speeds - 6F / 2R
-
Forward Traveling Speed - 0.23-11.9 mph (0.38-19.3 km/h)
-
Reverse Traveling Speed - 0.29-4.4 mph (0.47-7.1 km/h)
-
Clutch - Dry Single Plate
-
Brake - Wet, Multi-disc
-
Differential Lock - STD
-
Cruise Control - No
-
-
HYDRAULICS :
-
Steering - Power Assisted Hydrostatic
-
Total Hydraulic Flow (POWER STEERING+Implement) - 7.4 (3.1+4.3) gpm/ 28.1 (11.7+16.4) lpm
-
Lift Control Type - N/A
-
Joystick Valve - No
-
Rear Remote (Port) - N/A
-
-
3 POINT HITCH :
-
3 Point Hitch - CAT I
-
Lift capacity at lift link ends - 1,499 lbs (680 kg)
-
3Point Hitch Lift Capacity @24″ behind lift point - 974 lbs (442 kg)
-
-
PTO :
-
Rear (Mid) PTO Speed - 540 / 960 (2,500 rPM)
-
Rear PTO Type - Live
-
Clutch - –
-
-
TIRES :
-
AG Front - 6 – 12
-
AG Rear - 9.5 – 16
-
Turf Front - 23 x 8.50 – 12
-
AG Rear - 33 x 12.50 – 16.5
-
Ind. Front - 23 x 8.50 – 12
-
AG Rear - 12 – 16.5
-
-
DIMENSIONS :
-
Wheelbase - 59.1 in (1,502 mm)
-
Overall Length (W/ 3PT) - 120.3 in (3,055 mm)
-
Min.Overall Width - 44.2 in (1,124 mm)
-
Overall Height (W/ ROPS) - 87.3 in (2,219 mm)
-
Ground Clearance (4WD) - 12.1 in (307 mm)
-
Min.Turning Radius (W/ Brake) - 9.61 ft (2.93 m)
-
Weight (W/O Front Weights) - 1,792 lbs (813 kg)
-
